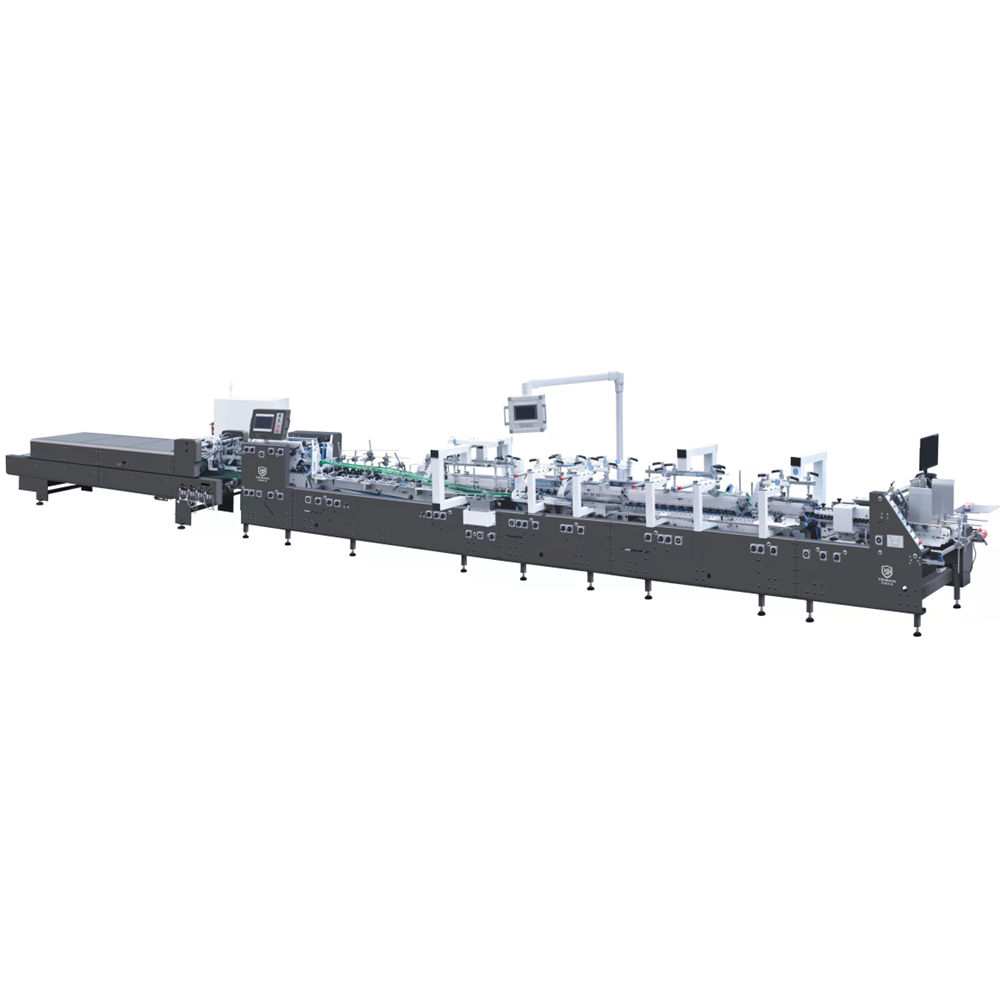

This series of products are mainly devoted to the research and development of high speed and high efficiency, card box and corrugated paper box, and the cost of purchasing and equipment management. This series of products using modular design, convenient customer in different types of product processing, upgrading and purchase requirements, and can be upgraded in a timely manner and does not affect the use of the whole set of equipment and the processing performance of the original product. Can be achieved in the customer's production has not changed and the product type changes, the need to repeat the purchase of different processing equipment.
Model | GSF-850C4&6 | GSF-1100 C4&6 | ||
Paper Thickness | 200-800gsm paperboard,ABCEF Corrugated boxes | 200-800gsm paperboard,ABCEF Corrugated boxes | ||
Box Type | Standard box, double sides, lock bottom box, flat mouth box. | Standard box, double sides, lock bottom box, flat mouth box. | ||
Max Speed | 400m/min | 400m/min | ||
Power | 17KW | 19KW | ||
Weight | 7000KGS | 9000KGS | ||
Size | 16*2.0*1.5m | 16*2.3*1.5m | ||
(C.A,P): | 6par | 6par | ||
(C.A.E) | 6/h | 6/h | ||
(C.A.V): | 40L | 40L | ||
(C.A.E) | 6/h | 6/h | ||
( Optional) :Cold Glue Syestem: 3 spary Gun; Plasma System, according to actually need. | ||||
·Humanized design,a hexagonal wrench can adjust most of the parts,debugging easy;
·Touch Screen, button, remote control distance, three panels of the trinity are operating equipment. Convenient and quickly.
·The machine wallboard and some complex casting using computer laser cutting, dominant board conditioning treatment after hot and cold.
·Parts design, processing precision, good stability, high speed low noise, good durability.
·Bearing adopts Japan NSK bearing, the main shaft adopts hard chrome steel rods, fastening bolt use 1.9 on the richer scale.
·Main motor adopt Taiwan TECO brand, pressing machine adopt Taiwan SHENG BOND precision CPG brand.
·Master electrical frequency converter, PLC. Schneider Brand, the higher WEINVIEW touch screen TAIWAN BRAND.
·Wedge pulleys and wedge belt adopts FRENCH Hutchinson Brand.Conveyor belt by Swiss RAPPLON, Flat belt adopt Japan NITTA belt.
·Independent servo motor drive, high speed operation Is accurate transfer paper, so as to achieve the best capacity;
·Large micro adjust paper knife, lateral baffle width adjustment is convenient
·Vortex pump configuration Independent suction chamber and the valve, increase rubber belt paper friction with smooth paper;
·Scalable paper stack at the back of the support for longer box.
· Independently adjustable side gauge, paper work on a transverse stretching device and delivery by a parallel guide Bracket, ensure paper parallel alignment;
·Both sides can realize alignment function from the device, the operation Is simple rapid
·The upper left glue flap 180° pre-folding, the third line 135° pre-folding;
·The First and the third line folding open the device
·Equipped with bottom combination adjustment mechanism, ideal design and easy operation,high stiffness spring hook to ensure accurate action;
·Adjustable hook device, modular design, significantly reduced the transform box type of set-up time, convenient Installation and transformation of attachment;
·Configuration and high elastic hook module;
·Paste on the drum using electronic spray adhesive system, according to the model select configuration with two or three sets of cold glue guns;
·Other top electronic spray adhesive system configuration can choose according to the needs of aircraft configuration;
·Cylinder for each side of the paste, a large capacity design, do not jilt or leak glue during high-speed working.
·Accurately completing the second line, the fourth line 180 degrees combination; Around 180 degrees abduction Angle Is adjustable, with a belt transmission devIC8, which can effectively ensure the parallel alignment, folding carton samp1e accurately closed;
·Two sets of bracket and the bracket, the conveyor belt width is 25 mm, the conveyor belt Width & 34 mm, 25 mm kidnapper broadband 34 mm l 40 mm 1 50 mm;
·Equipped with the belt tension automatic control system, easy to tear open outfit;
·Independent motor drive; (follow) manual and automatic operation mode;
·According to the different length of the box, conveyor belt pressure driven by motor, can move, configure automatic correction device; Pressure adjustment with pneumatic system, it is convenient adjustment
·Throughout the total length of 5,6 meters effectively conveying, available length 3.6 meters, to extend the time of cartons of adhesive, improve the quality of adhesive;
