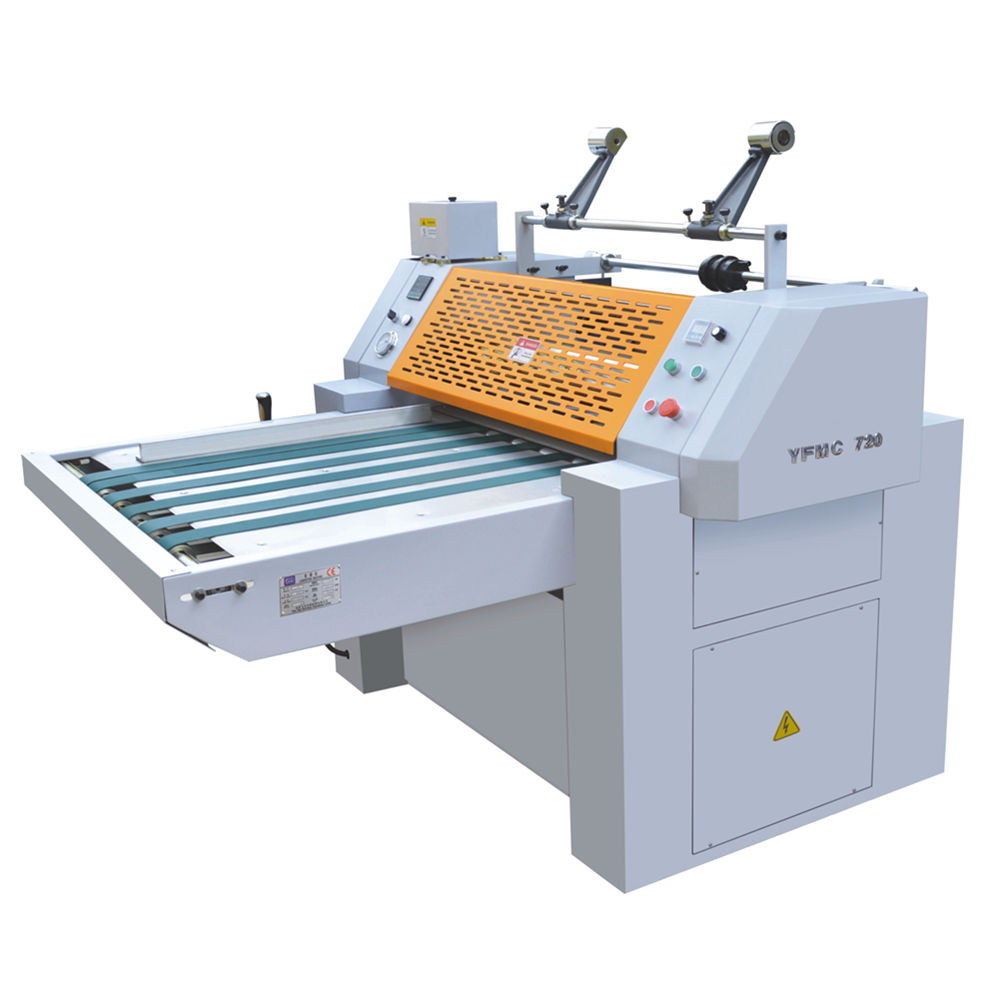

YFMC-720B Manual Film Laminating Machine

#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{padding:0......Keywords:Yfmc-720b Manual Film Laminating Machine - Buy Film Laminating Machine bopp Film Lamination Machine plastic Film Machine Product on Wenzhou Feihua Printing Machinery Co., Ltd.

Product Description

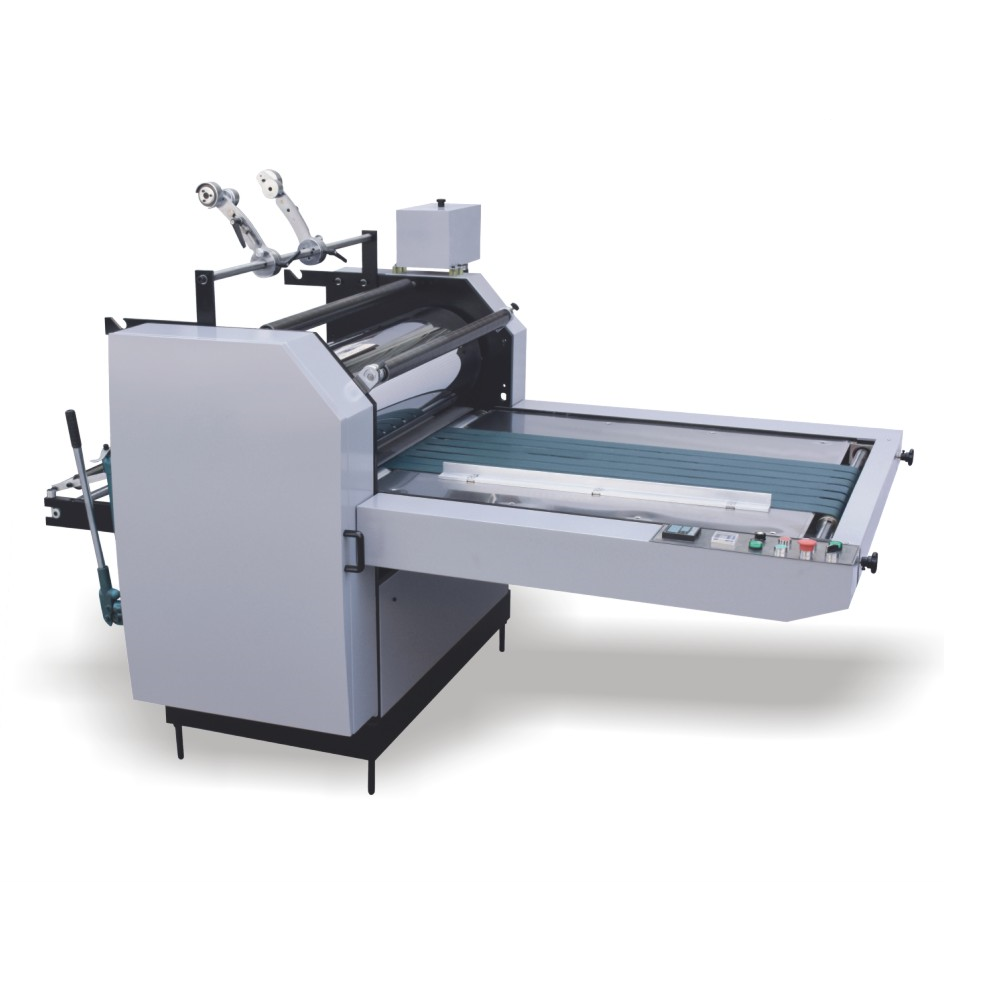

YFMC-720B/920B/1200B Manual Hot Melt Laminating Machine

Applications: To suit two kinds of film:pre-glued film and glueless film

• High Speed

• Easy to operate

• Manual feeding paper

• 216mm roller

• Oil heating

• Stable and precise

• 1 year warranty

00:00

Item	Data	Data	Data
Model	YFMC-720B	YFMC-920B	YFMC-1200B
Max laminating width	620mm	820mm	1100mm
Speed of Laminating	0-30m/min	0-30m/min	0-30m/min
Temperature of laminating	60-130ºC	60-130ºC	60-130ºC
Total power	10kw	12kw	15kw
Voltage	380V	380V	380V
Total weight	600kg	700kg	900kg
Overall dimension	210013001600mm	210015001600mm	210017001600mm

·SCHNEIDER frequency converter is equipped for infinitely variable speed, and the operator can change the machine's speed easily and guarantee the machine's running stable.
·One-piece construction design makes the machine run more stably, and lengthens the machine's lifetime.
·Manual paper feeding.
·Magnetic regulating plate can be adjusted easily to regulate manual paper feeding.
·High precision of chrome plated heating roller is equipped with built-in oil heating system, which has excellent performance to temperature control. The laminating temperature is adjustable upon applications.
·Hydraulic pressuring system provides big and steady pressure to guarantee good laminating quality.
·Film cutter cuts film width to make it meet paper size. The cut film is left on the film release spindle.
·Film perforating wheel perforates film edge to make the separation of laminated paper easy.
·Laminated paper is rolled up automatically by the winding spindle. Winding speed is adjustable upon.

Automatic Overlap Regulator

Corrugated Delivery

320mm Large Heating Roller

Why Choose Us?

1. With 10 years' Experience
2. Having ISO 9001-Certified Factory
3. Strong R&D capability
4. High Quality Guaranteed
5. First Class Service And Best Prices

New Star Machinery international Limited And glory packing material produce kinds of laminating machine and uv coating machine and BOPP Thermal film metallizde PET And 3D , Soft touch film . With the development and innovation of post-press equipments, our company has carried on deep research and development to post-press equipments combining the features of printing & packing industry home and abroad. The products occupy sizable market at home and also have been expanded to all over the world.

Q1: What it is advantage of your products?
A1: Easily operation and simply maintenance. Also coat effective in market.
Q2: How long for the guarantee?
A2: 12 month free warranty.
Q3: The engineer is available for overseas services?
A3: Yes, we supply engineer who is good at communication and understand English.
Q4: Why your price is nice than other supplier. (May you was received our machine's quotation but you still can't decided make order now or latter, hope there I not yet miss you.)
A4: We are manufacture and our engineer and worker is local. Furthermore. we are more forcus on developing products not advertisement only.
Q5: What is the brands for the electrical system?
A5: We are using Schneider PLC inverter, Omron and other international brand's parts that ensure the machine could run smoothly.
Q6: Which level of your products in market?
A6: High and mid grade quality with nice price.
Q7: Where are you?
A7: We are located in Machine's city Wenzhou, Zhejiang,China, welcome to visit us while you visit China.
Q8: Will you supply for OEM or ODM orders?
A8: Yes, we are, if you have any advise please let us know that we could make unique machine for you only.
