YFMA-590Y/760Y Automatic Pre-coating Film Laminating Machine With Embossing for Photo

#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{padding:0......Keywords:Yfma-590y/760y Automatic Pre-coating Film Laminating Machine With Embossing For Photo - Buy Automatic Pre-coating film Laminating Machine high Precision Vacuum Oca Lamination Machine Product on Wenzhou Feihua Printing Machinery Co., Ltd.

Product Description

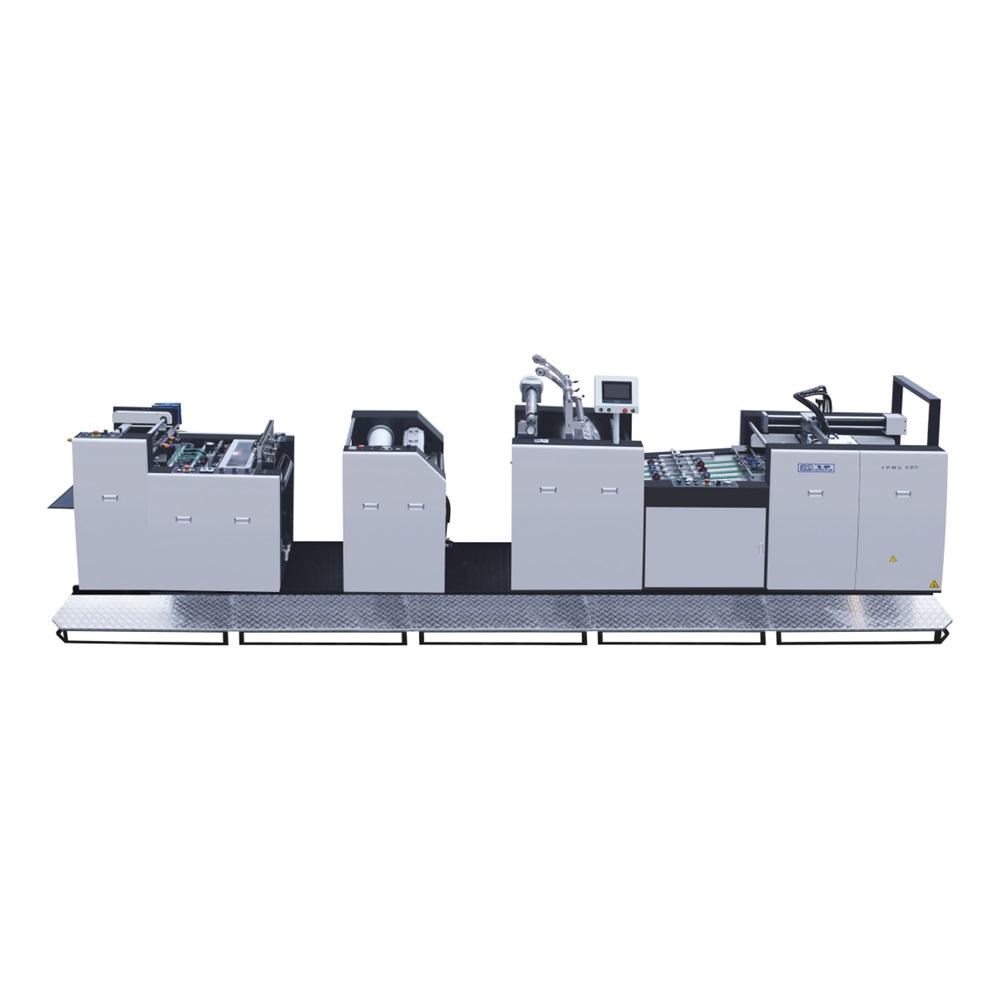

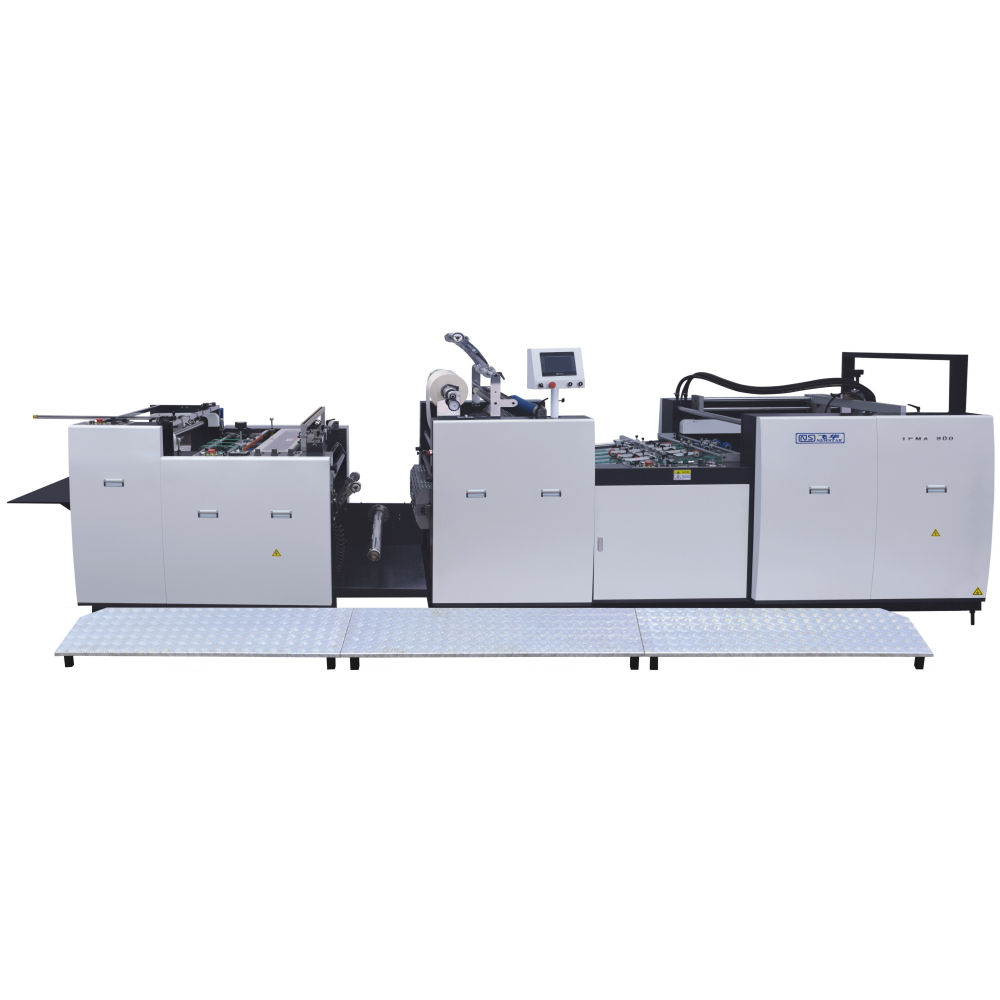

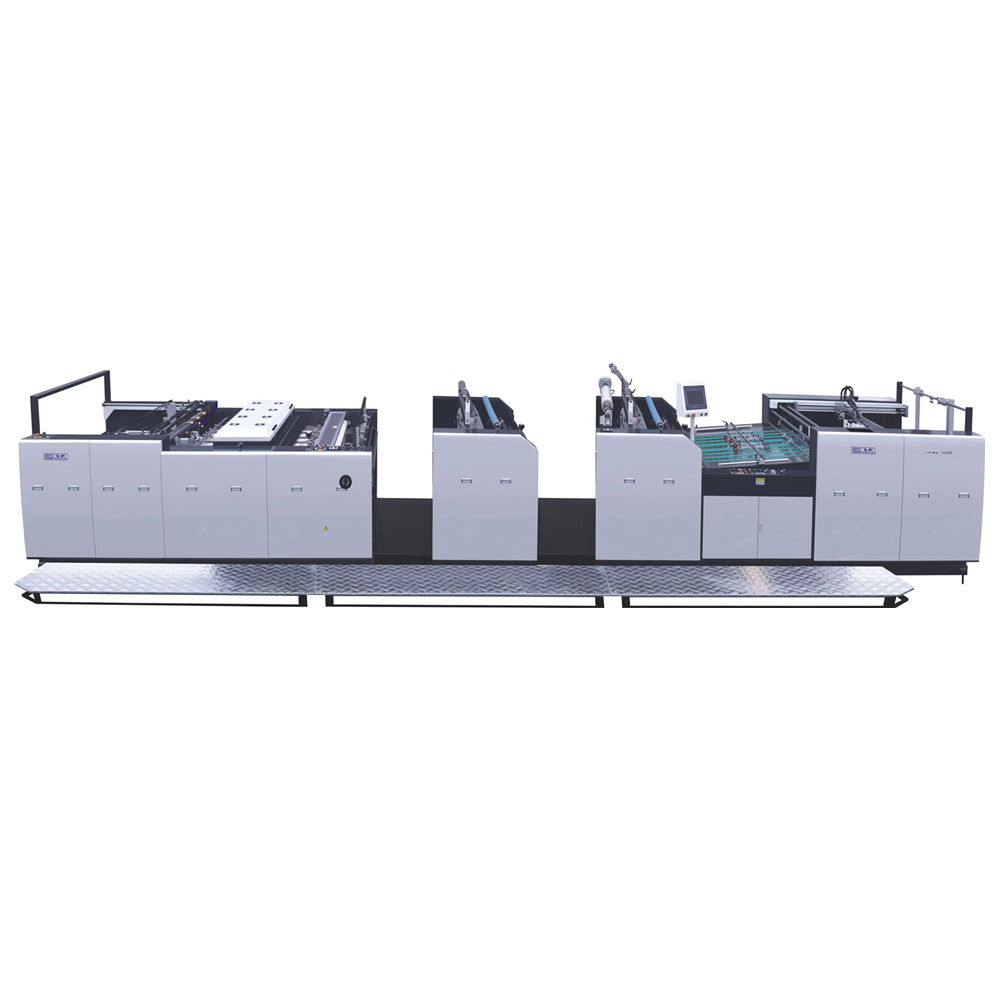

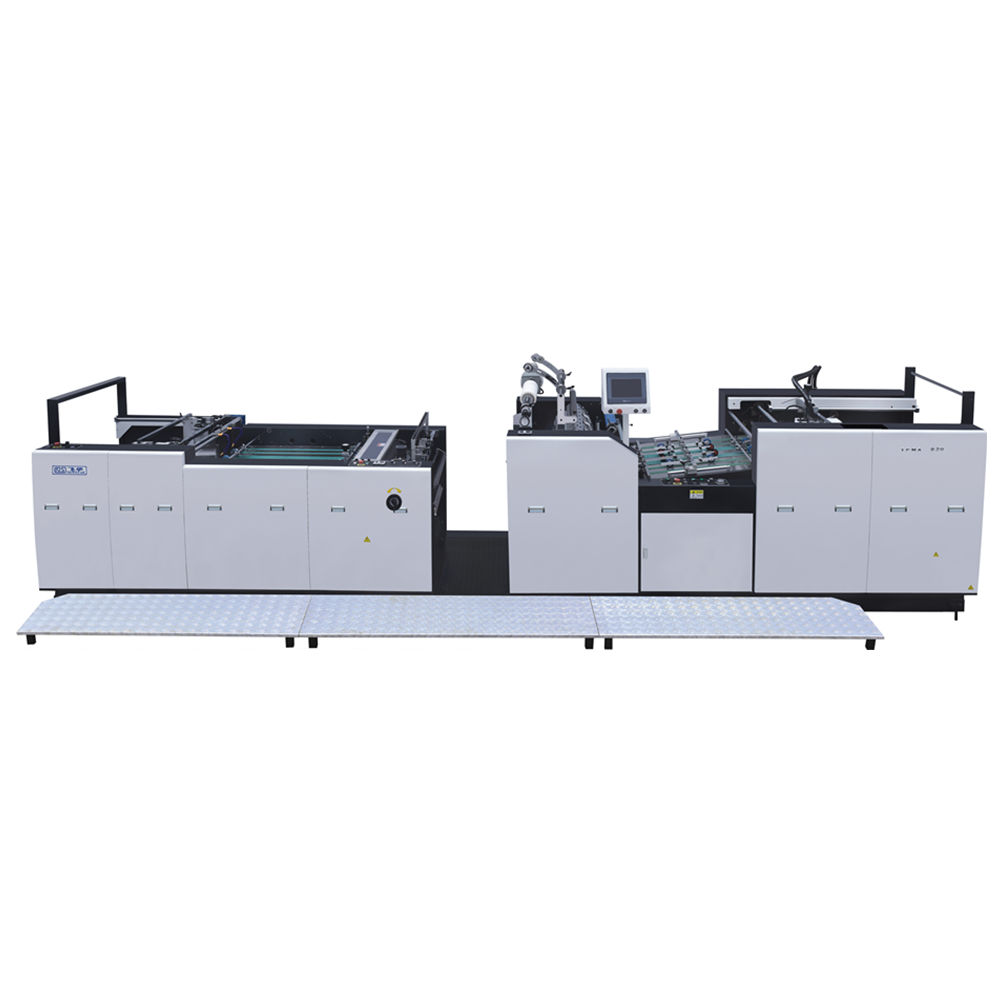

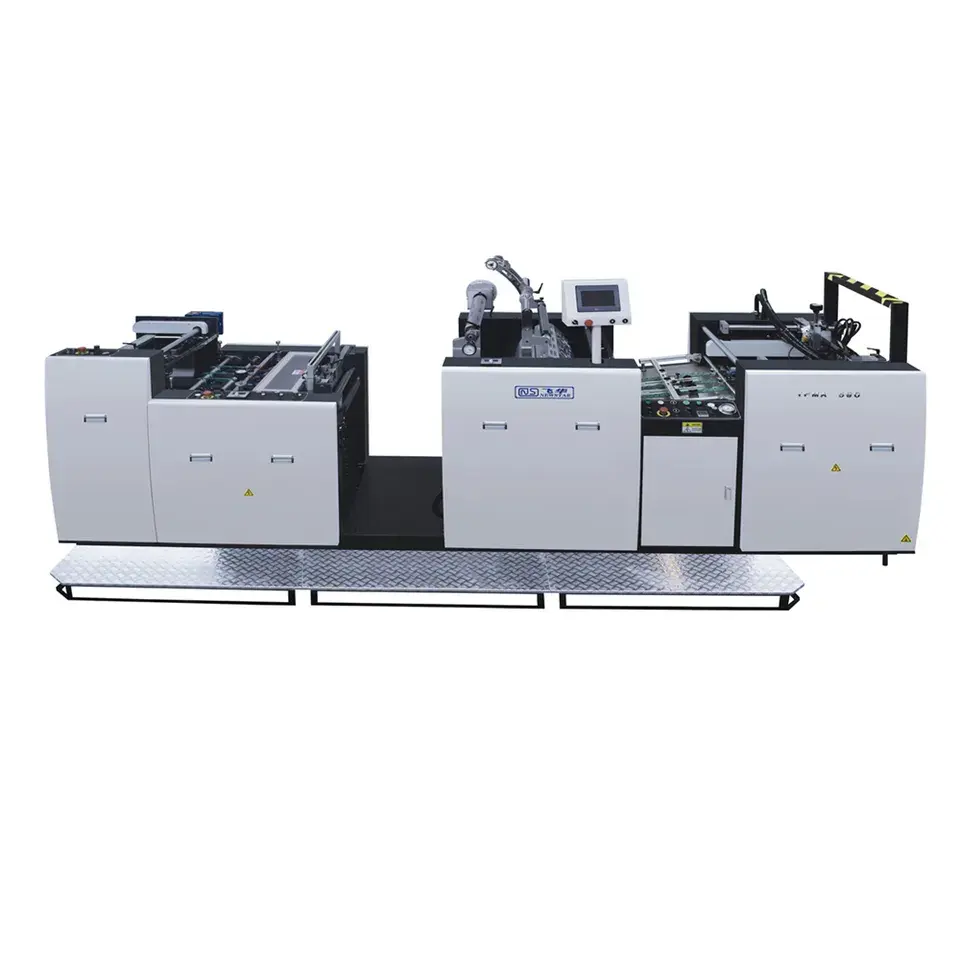

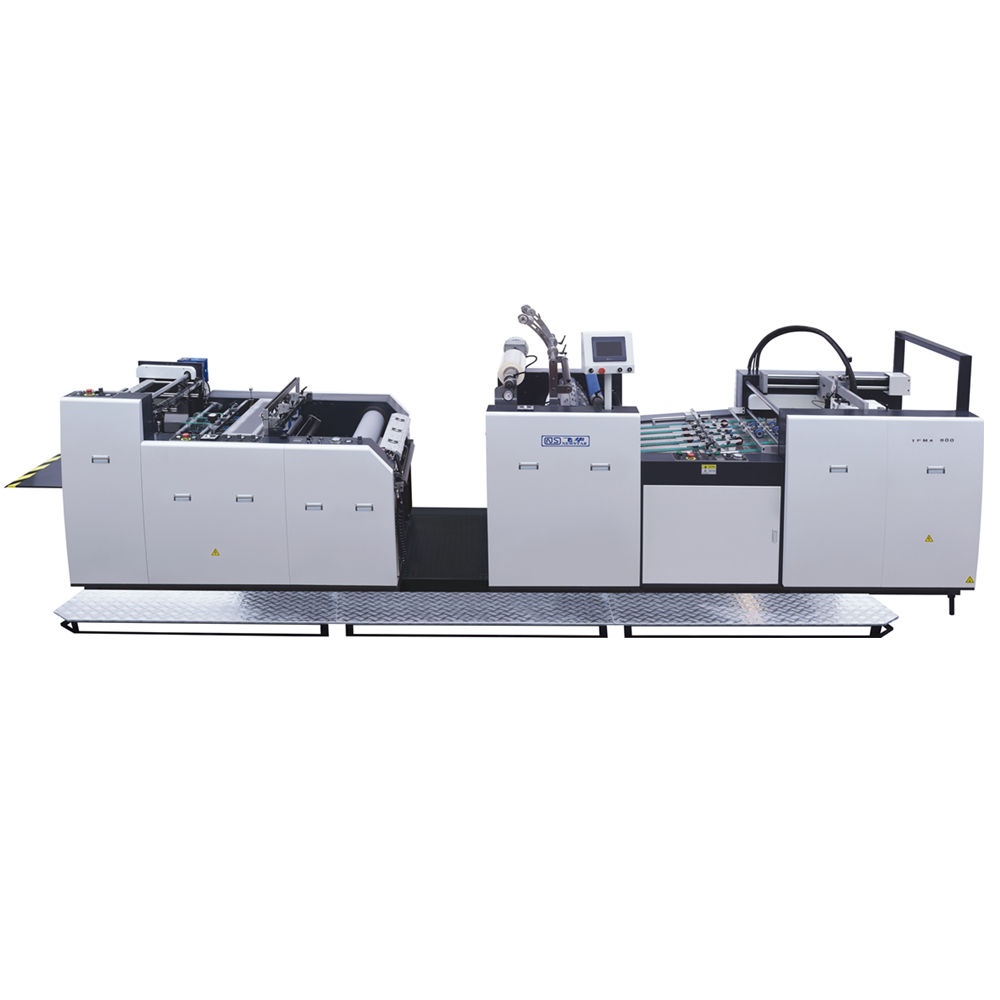

YFMA-760 Automatic Pre-coating Film Laminating Machine with Embossing for Photo

YFMA-590/760Y automatic embossing laminating machine has effectively solve the biggest pain point in the photo development industry: unable to meet the environmental protection requirements. Green environmental protection, help your enterprise develop green and sustainable! Innovative four roller embossing mechanism, multiple textures can be switched with one key to improve efficiency.

•High productivity•Pre-stacking feeder
•High accuracy servo control
•PLC control
•Optional embossing patterns
•Easy to operate
•One year free warranty

00:00

No	Item	YFMA-590Y	YFMA-760Y
1	Max Laminating Paper	590*760mm	760*950mm
2	Min Laminating Paper	210*240mm	240*270mm
3	Paper weight	80-500g/㎡	80-500g/㎡
4	Laminating speed	one side: 0-80m/mindouble side: 0-50m/min	one side: 0-80m/mindouble side: 0-50m/min
5	Power	20kw	20kw
6	Paper feed height	680mm	780mm
7	Paper stack height	650mm	750mm
8	Overall dimensions	680013501800mm	680016001800mm
9	Total weight	6000kg	6500kg

·Stream feeder, with automatic sheeting and jogger delivery.
·Oil free vacuum pump on stream feeder with both separating and forwarding suckers.
·Servo-controlled pump on stream feeder with both separating and forwarding sucker.
·Colour touch screen interface, programable for sheet size and overlap.
·Oil heated for stable and precise PID electronic control of temperature.
·Film slitting and perforating system on feed roll.
·Sheet decurling device for production of flat laminated sheets.
·Strong pneumatic laminating pressure.
·Pneumatic film tension brake.
·Swing-away film loading onto airshaft.
·Whole machine is easily moved by pallet trolly for convenient storage in limited spaces.

Why Choose Us?

1. With 10 years' Experience
2. Having ISO 9001-Certified Factory
3. Strong R&D capability
4. High Quality Guaranteed
5. First Class Service And Best Prices

New Star Machinery international Limited And glory packing material produce kinds of laminating machine and uv coating machine and BOPP Thermal film metallizde PET And 3D , Soft touch film . With the development and innovation of post-press equipments, our company has carried on deep research and development to post-press equipments combining the features of printing & packing industry home and abroad. The products occupy sizable market at home and also have been expanded to all over the world.

Q1: What it is advantage of your products?
A1: Easily operation and simply maintenance. Also coat effective in market.
Q2: How long for the guarantee?
A2: 12 month free warranty.
Q3: The engineer is available for overseas services?
A3: Yes, we supply engineer who is good at communication and understand English.
Q4: Why your price is nice than other supplier. (May you was received our machine's quotation but you still can't decided make order now or latter, hope there I not yet miss you.)
A4: We are manufacture and our engineer and worker is local. Furthermore. we are more forcus on developing products not advertisement only.
Q5: What is the brands for the electrical system?
A5: We are using Schneider PLC inverter, Omron and other international brand's parts that ensure the machine could run smoothly.
Q6: Which level of your products in market?
A6: High and mid grade quality with nice price.
Q7: Where are you?
A7: We are located in Machine's city Wenzhou, Zhejiang,China, welcome to visit us while you visit China.
Q8: Will you supply for OEM or ODM orders?
A8: Yes, we are, if you have any advise please let us know that we could make unique machine for you only.
