New Arrival Dual Purpose UV Water Base Paper Varnish Coating Machine SGUV-1040A

#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{vertical-align:top}#detail_decorate_root .magic-2{padding:0......Keywords:New Arrival Dual Purpose Uv Water Base Paper Varnish Coating Machine Sguv-1040a - Buy Paper Varnish Coating Machine uv Machine Coating water Base Coating Machine Product on Wenzhou Feihua Printing Machinery Co., Ltd.

Product Description

SGUV-1040A/1200A Fully Automatic High-speed Coating Machine

The SGUV series is a practical fully automatic coating machine developed by our company, which is suitable for posters, books, brochures, color boxes, color box packaging, handbags, etc.

•Faster speed 80m/min •UV curing & IR drying

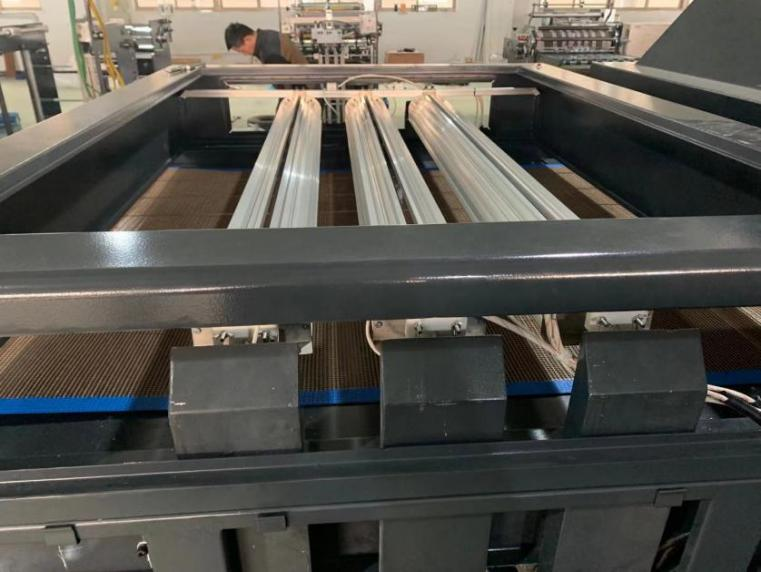

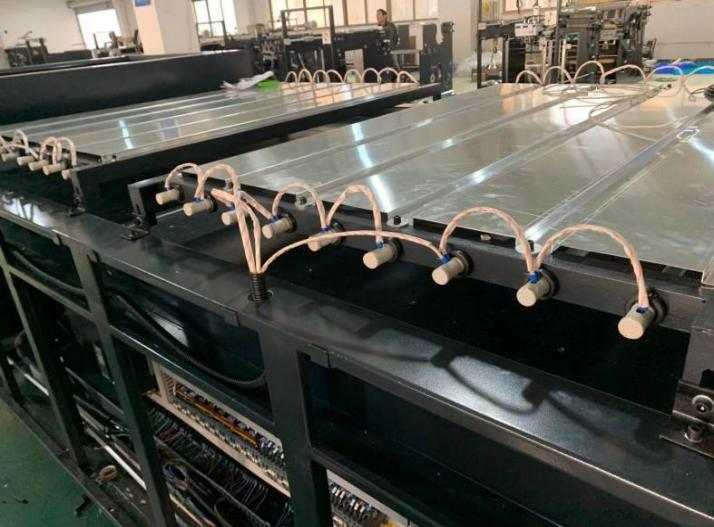

•3 uv lamps &18 IR lamps •Use uv oil ,water oil, soft touch oil..

•Larger rubber roller 165mm diameter •Deal with thin paper to 80gsm •Customized

No	Item	SGUV-1040A	SGUV-1200A	SGUV-1200A-L
1	Max. Sheet Size	1040*1000mm	1200*1000mm	1200*1450mm
2	Min. Sheet Size	270*270mm	300*300mm	300*300mm
3	Sheet Weight	80~450g/m2	80~450g/m2	80~500g/m2
4	Speed	0~80m/min	0~80m/min	0~80m/min
5	Power	45Kw	50Kw	50Kw
6	UV Lamp	3pcsx8Kw	3pcsx9.75Kw	3pcsx9.75Kw
7	IR Lamp	18pcsx1.5Kw	18pcsx1.5Kw	18pcsx1.5Kw
8	Paper feed height	1100	1100	1100
9	Paper stack height	1050	1050	1050
10	Weight	6000kg	6500kg	6700kg
11	Dimension	10000x1800x20000mm	11000x2000x2000mm	13000x2200x2000mm

1.Paper pre-stacker，to realize non-stop paper feeding and receiving
2.High degree of intelligence, one-button start and acceleration, more convenient and efficient than traditional segmented
control.
3.The shaft head is 55mm large, which is more stable and firmer than the traditional 35mm under high speed, without deformation, and good coating effect!
4.Synchronous belt transmission, the equipment is more stable, no jitter. The surface texture effect will be better in high-end products.
5.The oil guard has high precision, and it is more difficult for water to enter the bearing than the traditional one.
6.The air knife is easy to operate! High-precision correction, tight on both sides, no slight soft deformation and damage to the mesh belt.

Why Choose Us?

1. With 12 years' Manufacturing Experience
2. Having ISO 9001-Certified Factory
3. Strong R&D capability
4. High Quality Guaranteed
5. First Class Service And Best Prices

Laminating Machine

Coating Machine

Folder gluer

Flute Laminating Machine

Rigid Box Machine

Paper Tube Machine

Vertical Laminating Machine

Die Cutting Machine

Hot Stamping Machine

Q1: What it is advantage of your products?
A1: Easily operation and simply maintenance. Also coat effective in market.

Q2: How long for the guarantee?
A2: 12 month free warranty.

Q3: The engineer is available for overseas services?
A3: Yes, we supply engineer who is good at communication and understand English.

Q4: Why your price is nice than other supplier. (May you was received our machine's quotation but you still can't decided make order now or latter, hope there I not yet miss you.)
A4: We are manufacture and our engineer and worker is local. Furthermore. we are more forcus on developing products not advertisement only.

Q5: What is the brands for the electrical system?
A5: We are using Schneider PLC inverter, Omron and other international brand's parts that ensure the machine could run smoothly.

Q6: Which level of your products in market?
A6: High and mid grade quality with nice price.

Q7: Where are you?
A7: We are located in Machine's city Wenzhou, Zhejiang,China, welcome to visit us while you visit China.

Q8: Will you supply for OEM or ODM orders?
A8: Yes, we are, if you have any advise please let us know that we could make unique machine for you only.
