Home > Products > Laminating machine > FHS-1050 Fully Automatic Vertical Multi-purpose Laminator Machine With Chain Knife
FHS-1050 Fully Automatic Vertical Multi-purpose Laminator Machine With Chain Knife

FHS-1050 Fully Automatic Vertical Multi-purpose Laminator Machine With Chain Knife

#detail_decorate_root .magic-0{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-1{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .m......Keywords:Fhs-1050 Fully Automatic Vertical Multi-purpose Laminator Machine With Chain Knife - Buy Chain Knife Laminating Machine,Automatic Laminating Machine With Chain Knife,Vertical Laminating Machine Product on Wenzhou Feihua Printing Machinery Co., Ltd.

Send Inquiry

Product Description

00:00
00:00

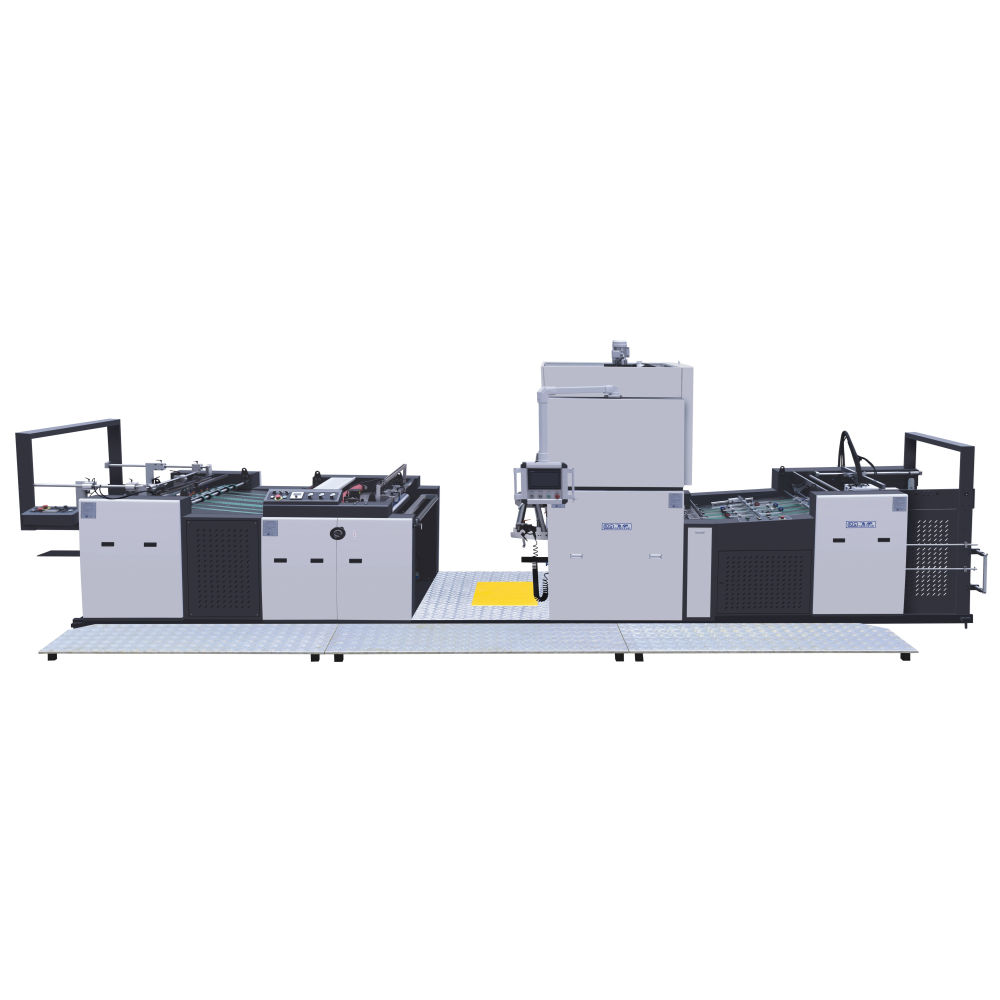

FHS-1050 Fully Automatic Vertical Multi-purpose Laminator with Chain Knife

The FHS series is a high-speed pre-coating model launched by our company, which is suitable for posters, books, information albums, posters, color boxes, color box packaging, handbags, etc.
•Hot and cold dual-purpose
•Pre-stacking feeder
•Auto stacker
•High accuracy servo control
•High working speed
•Easy to operate
•Chain knife cutter
•One year free warranty
FHS-1050 Fully Automatic Vertical Multi-purpose Laminator Machine With Chain Knife
FHS-1050 Fully Automatic Vertical Multi-purpose Laminator Machine With Chain Knife
Front elevation
FHS-1050 Fully Automatic Vertical Multi-purpose Laminator Machine With Chain Knife
Left elevation
FHS-1050 Fully Automatic Vertical Multi-purpose Laminator Machine With Chain Knife
Right elevation
No
Item
FHS-850
FHS-1050
1
Max Laminating Paper
780*1050mm
1050*1050mm
2
Max Laminating Paper
270*240mm
300*300mm
3
Paper weight
80-500g/㎡
80-500g/㎡
4
Overlap error
±2mm
±2mm
5
Laminating speed
0-65m/min
0-65m/min
6
Power
60kw
65kw
7
Electricity
25kw/h
28kw/h
8
Paper feed height
1150mm
1150mm
9
Paper stack height
1050mm
1050mm
10
Overall dimensions
8600*1800*2000mm
8600*2000*2000mm
11
Total weight
7500kg
8000kg
FHS-1050 Fully Automatic Vertical Multi-purpose Laminator Machine With Chain Knife
Automatic non-stop paper feeding
With upper and lower limit protection

FHS-1050 Fully Automatic Vertical Multi-purpose Laminator Machine With Chain Knife
High-speed feeder (12000 pcs/h)
Oil-free vacuum pump air suction
FHS-1050 Fully Automatic Vertical Multi-purpose Laminator Machine With Chain Knife
Vacuum suction for paper conveying
FHS-1050 Fully Automatic Vertical Multi-purpose Laminator Machine With Chain Knife
High-precision synchronous belt
Stepless frequency conversion speed
FHS-1050 Fully Automatic Vertical Multi-purpose Laminator Machine With Chain Knife
Double sheet detect sensor
Front gauge and side lay positioning
FHS-1050 Fully Automatic Vertical Multi-purpose Laminator Machine With Chain Knife
800mm glue roller
FHS-1050 Fully Automatic Vertical Multi-purpose Laminator Machine With Chain Knife
380mm heating roller
320mm pressure roller
FHS-1050 Fully Automatic Vertical Multi-purpose Laminator Machine With Chain Knife
Pneumatic cutting system
FHS-1050 Fully Automatic Vertical Multi-purpose Laminator Machine With Chain Knife
High speed rotation knife
FHS-1050 Fully Automatic Vertical Multi-purpose Laminator Machine With Chain Knife
Corrugated paper delivery
Automatic cumulative counting
FHS-1050 Fully Automatic Vertical Multi-purpose Laminator Machine With Chain Knife
Electric heating powder removal (optional)
FHS-1050 Fully Automatic Vertical Multi-purpose Laminator Machine With Chain Knife
Chain knife cutting
FHS-1050 Fully Automatic Vertical Multi-purpose Laminator Machine With Chain Knife
•Training Content All machines have been finished all adjustment and test in NEW STAR workshop before delivery, the mechanical structure, components adjustment, electrical operation of the switch, and the matters needing attention, day-to-day maintenance of equipment, etc., In order to ensure the normal operation of equipment, later. •Warranty 12 months for electric parts, the service is for whole life, once you asked the spare parts, we can send immediately, customer afford the courier fee. (Since the date of purchase from delivery and on the board, within 12 months)
FHS-1050 Fully Automatic Vertical Multi-purpose Laminator Machine With Chain Knife
WHY CHOOSE US?
1. With 20 years' Manufacturing Experience
2. Having ISO 9001-Certified Factory
3. Strong R&D Capability
4. High Quality & Advanced Technology
5.Abundant Products Customized on Demand
6. Factory Direct Supply with Best Prices
7. Worry-free After Sales Service
8. All Machines Meet CE Standard
Wenzhou Feihua Printing Machinery Co., Ltd has more than 20 years of post-press equipment manufacturing experience, specializing in the production of laminating machines, full or spot coating machines and bopp films. A professional company integrating scientific research, design, manufacturing, sales and service!
FHS-1050 Fully Automatic Vertical Multi-purpose Laminator Machine With Chain Knife
FHS-1050 Fully Automatic Vertical Multi-purpose Laminator Machine With Chain Knife
FHS-1050 Fully Automatic Vertical Multi-purpose Laminator Machine With Chain Knife
FHS-1050 Fully Automatic Vertical Multi-purpose Laminator Machine With Chain Knife
FHS-1050 Fully Automatic Vertical Multi-purpose Laminator Machine With Chain Knife
FHS-1050 Fully Automatic Vertical Multi-purpose Laminator Machine With Chain Knife
FHS-1050 Fully Automatic Vertical Multi-purpose Laminator Machine With Chain Knife
FHS-1050 Fully Automatic Vertical Multi-purpose Laminator Machine With Chain Knife
FHS-1050 Fully Automatic Vertical Multi-purpose Laminator Machine With Chain Knife
FHS-1050 Fully Automatic Vertical Multi-purpose Laminator Machine With Chain Knife
Q1: What it is advantage of your products?
A1: Easily operation and simply maintenance. Also coat effective in market.

Q2: How long for the guarantee?
A2: 12 month free warranty.

Q3: The engineer is available for overseas services?
A3: Yes, we supply engineer who is good at communication and understand English.

Q4: Why your price is nice than other supplier. (May you was received our machine's quotation but you still can't decided make order now or latter, hope there I not yet miss you.)
A4: We are manufacture and our engineer and worker is local. Furthermore. we are more forcus on developing products not advertisement only.

Q5: What is the brands for the electrical system?
A5: We are using Schneider PLC inverter, Omron and other international brand's parts that ensure the machine could run smoothly.

Q6: Which level of your products in market?
A6: High and mid grade quality with nice price.

Q7: Where are you?
A7: We are located in Machine's city Wenzhou, Zhejiang,China, welcome to visit us while you visit China.

Q8: Will you supply for OEM or ODM orders?
A8: Yes, we are, if you have any advise please let us know that we could make unique machine for you only.
FHS-1050 Fully Automatic Vertical Multi-purpose Laminator Machine With Chain Knife
FHS-1050 Fully Automatic Vertical Multi-purpose Laminator Machine With Chain Knife
